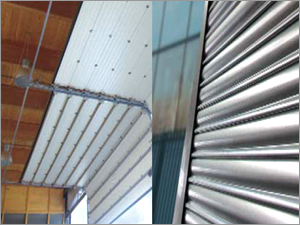

Rolling Shutters

Rolling Shutters
Rolling Shutters
Product Code : 02
Product Description

We are one of the reckoned manufacturers and suppliers of the Rolling Shutters. These shutters are designed by our expert personnel using tested quality metals. Available with diverse manual emergency release devices, these shutters are widely used in commercial shops.  In order to meet the specific requirements of the clients, these shutters are offered to our clients in different colors and designs. Clients can get these Rolling Shutters from us at the unbeatable prices.

Features:



  • Corrosion resistive
  • Durable
  • High quality

Further Details:

With Tom, Nice offers a full range of motors for industrial sectional doors, roller shutters and high speed doors: the advanced technology, the quality of the detail and the lasting and reliable running guarantee automation systems with safety requirements and performance characteristics in accordance with the latest European standards and directives. Nice is the only make that allows you to offer integrated control system for both residential and industrial buildings.

Tom H
for fast doors

New range of gear motors for industrial high speed doors available with different manual emergency release devices, also with electronic limit switches, to constantly offer the ideal solution on all types of automation. Possibility of power supply via inverter: the automation speed can be adjusted simply by setting the frequency as required, thus optimising the work load and system performance.



Tom R
for roller shutters

Range of gear motors for industrial roller shutters up to 1870 kg, . Maximum safety thanks to the integrated anti-fall safety device and to the possibility of connecting safety devices such as optical or resistive sensitive edges.

Tom S
for balanced sectional doors

Range of gear motors for industrial sectional doors up to 600 kg, versions available also with electronic limit switches and movement control by means of absolute encoder. Flexible technology thanks to the choice of three different manual emergency release devices: rope, crank or chain type.



Technical specifications TMS

05017

05020

07020

10024

D10024

14017

Hole (mm)

25.4

31.75

Torque (Nm)

50


70

100


140

Static torque (Nm)

230

440

Lifted weight* (kg)

180


230

450

600

Speed (Rpm)

17

20


24


17

Power absorbed (KW)

0.24

0.37

0.55

Power (V/Hz)

1x230V

3x230V/3x400V 50Hz

1x230V

3x230V/3x400V 50Hz

Work cycle (ED)

S3-20%

S3-60%

S3-20%

S3-60%

S3-80%

S3-60%

Power supply cable (no x mm2)

3 x 0.75

5 x 0.75

3 x 0.75

5 x 0.75

Mains fuses (A)

10 (delayed)

Shaft revs per limit switch rev

15

Operating temperature (oc)

-5, +40

Noisiness dB(A)

<70

Protection level (IP)

54
